Flange filter(Strainer) is an indispensable device in pipeline systems for conveying media, usually installed at the inlet end of hydraulic control valves or other equipment, used to remove impurities from the media to protect the normal use of valves and equipment.
WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1
LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800

Phone: +86-0577-86910577

Email: nini@futaivalves.com

Address: Building 1, No. 896, Jinhai 1st Road, Airport New District, Wenzhou Bay New Area, Wenzhou, Zhejiang, People's Republic of China

Request a Quote

Product Information

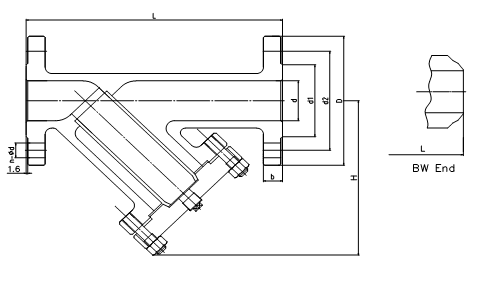

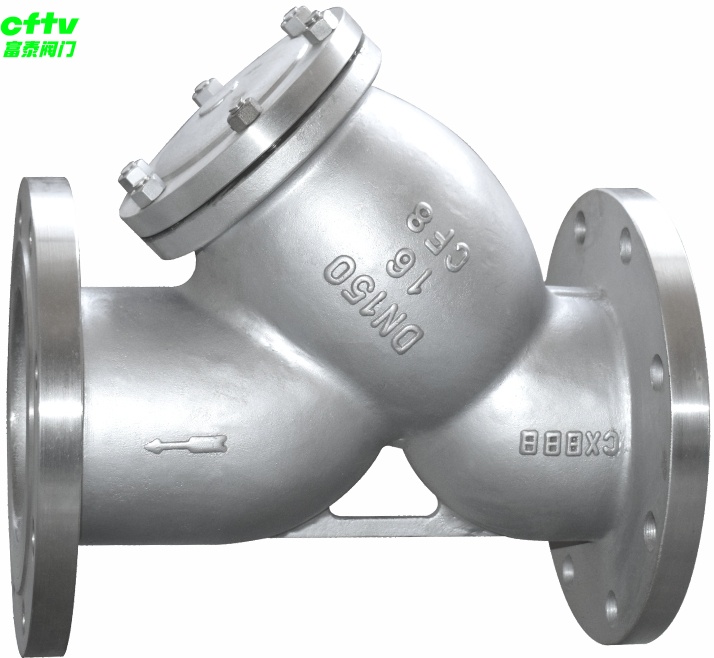

Class150 Y Type Strainer

Application

Face to Face Dimensions: ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：ANSI B16.34

Pressure Test：API 598

Materials：WCB, WC6, WC9, CF8, CF8M, CF3, CF3M, LC1, LC2, LC3, LCB, LCC, Monel, 20# Alloys, 4A, 5A

NPS	in	1/2	3/4	1	11/2	2	2 1/2	3	4	6	8	10	12
d	mm	13	19	25	38	51	64	76	102	152	203	254	305
L(RF)	mm	112	117	127	165	203	216	241	292	406	495	622	698
d1	mm	35	43	51	73	92	105	127	157	216	270	324	381
d2	mm	60.5	70	79.5	98.5	120.5	139.5	152.5	190.5	241.5	298.5	362	432
D	mm	89	98	108	127	152	178	190	229	279	343	406	483
b	mm	11	12	12	15	16	18	19	24	26	29	31	32
n-Фd	mm	4-16	4-16	4-16	4-16	4-19	4-19	4-19	8-19	8-22	8-22	12-26	12-26
H	mm	63	70	85	101	146	156	175	227	283	372	443	495

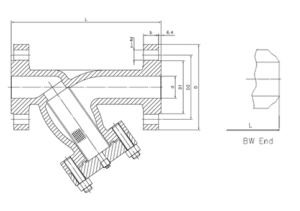

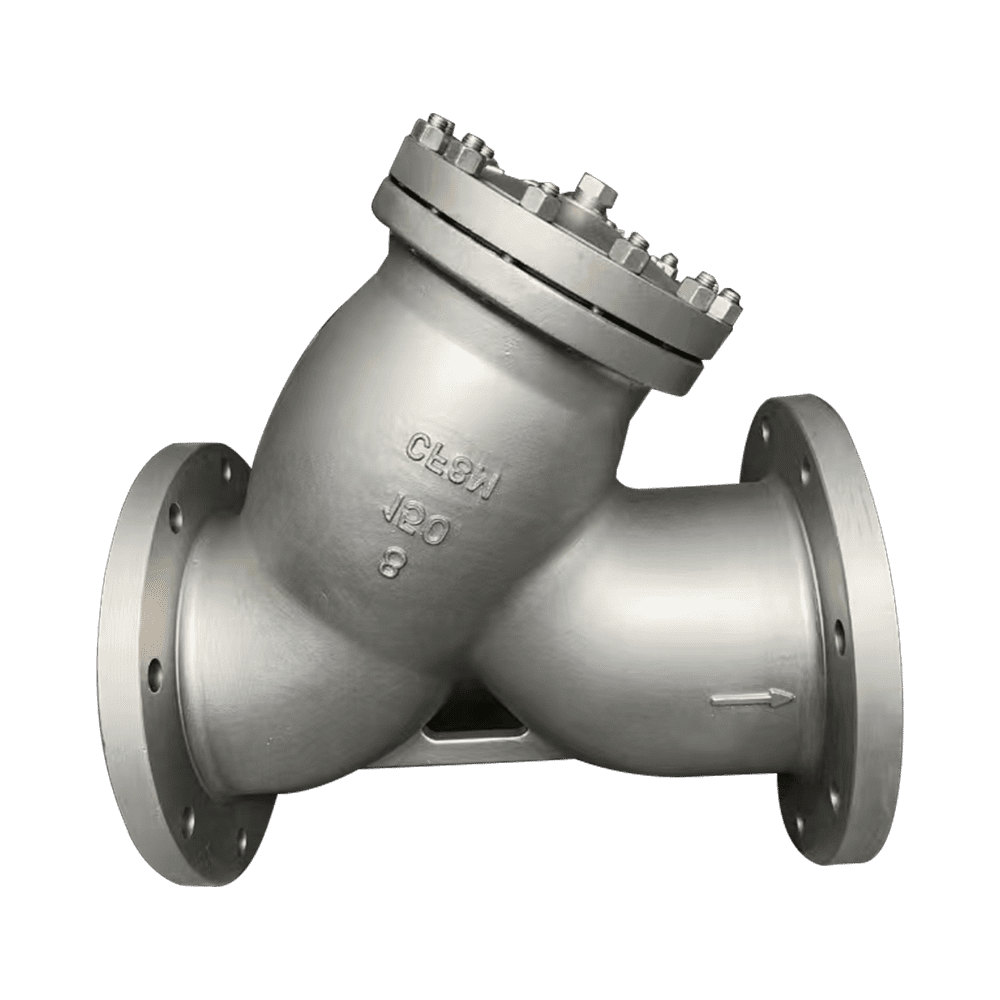

Class300 Y Type Strainer

Application

Face to Face Dimensions: ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：ANSI B16.34

Pressure Test：API 598

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800

NPS	in	1/2	3/4	1	11/2	2	2 1/2	3	4	6	8	10	12
d	mm	13	19	25	38	51	64	76	102	152	203	254	305
L(RF)	mm	152	178	203	229	267	292	318	356	444	559	622	711
d1	mm	35	43	51	73	92	105	127	157	216	270	324	381
d2	mm	66.5	82.5	89	114.5	127	149	168.5	200	270	330	387.5	451
D	mm	95	117	124	156	165	190	210	254	318	381	445	521
b	mm	15	16	18	21	23	26	29	32	37	42	48	51
n-Фd	mm	4-16	4-19	4-19	4-22	8-19	8-22	8-22	8-22	12-22	12-25	16-29	16-32
H	mm	63	70	85	120	151	162	175	235	295	396	485	610

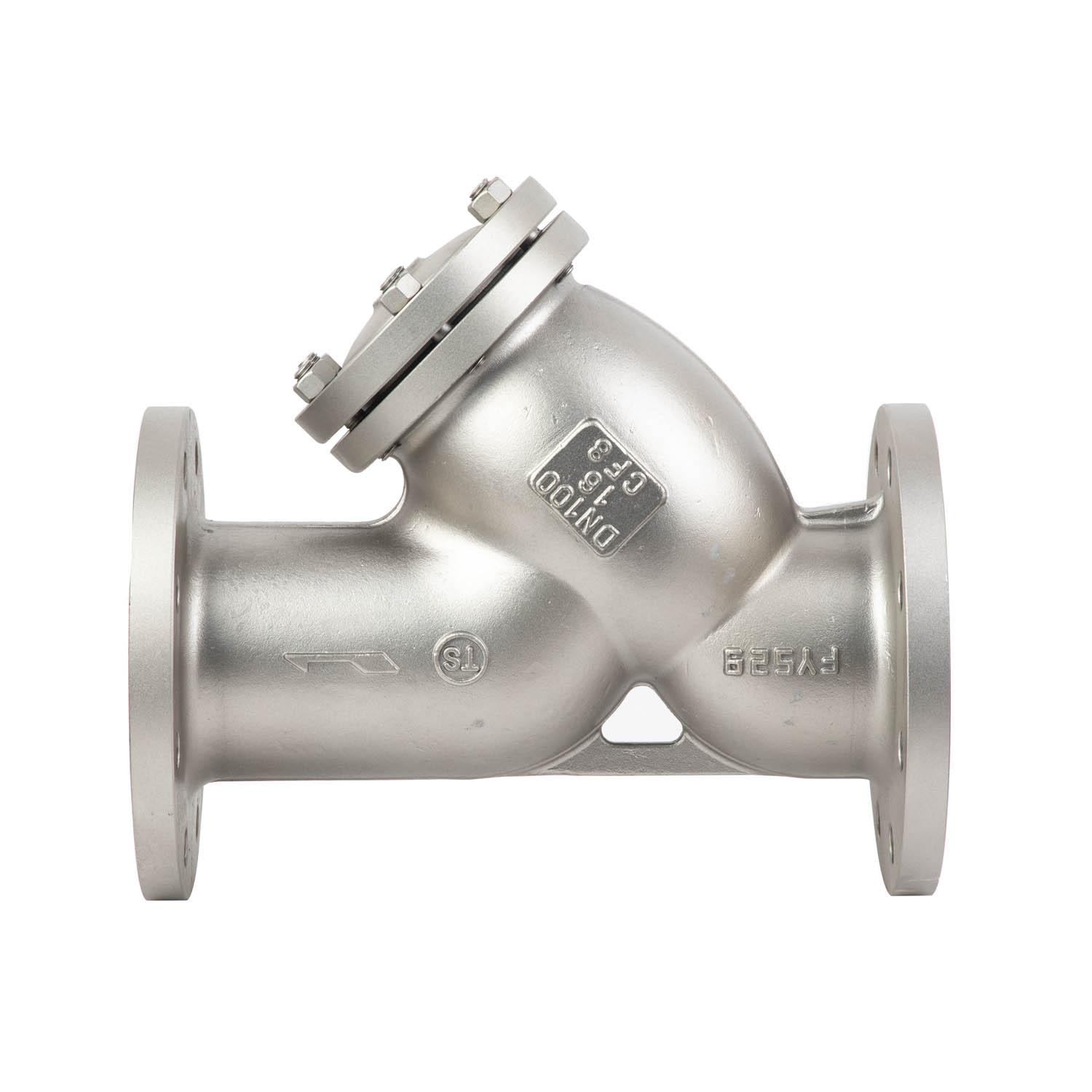

Class 600 Y Type Strainer

Application

Face to Face Dimensions: ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：ANSI B16.34

Pressure Test：API 598

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800

NPS	in	1/2	3/4	1	11/2	2	2 1/2	3	4	6	8	10	12
d	mm	13	19	25	38	51	64	76	102	152	203	254	305
L(RF)	mm	165	190	216	241	292	330	356	432	559	660	787	838
d1	mm	35	43	51	73	92	105	127	157	216	270	324	381
d2	mm	66.7	82.6	88.9	114.3	127	149	168.5	216	292	349	432	489
D	mm	95	115	125	241	165	190	210	273	356	419	508	559
b	mm	14.3	16	17.5	22.3	26	29	32	38	48	56	64	67
n-Фd	mm	4-16	4-16	4-16	4-22	8-19	8-22	8-22	8-25	12-29	12-32	16-35	20-35
H	mm	87	105	114	130	210	240	260	310	390	470	650	740
