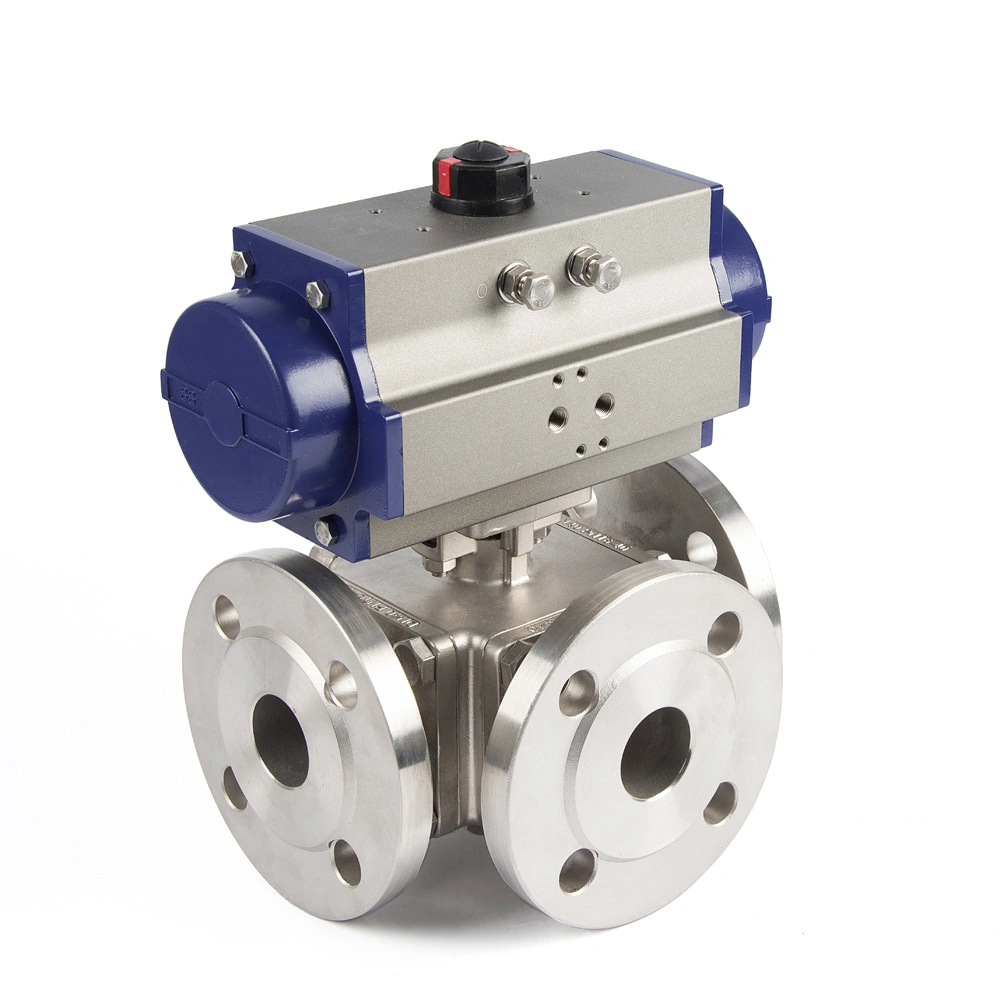

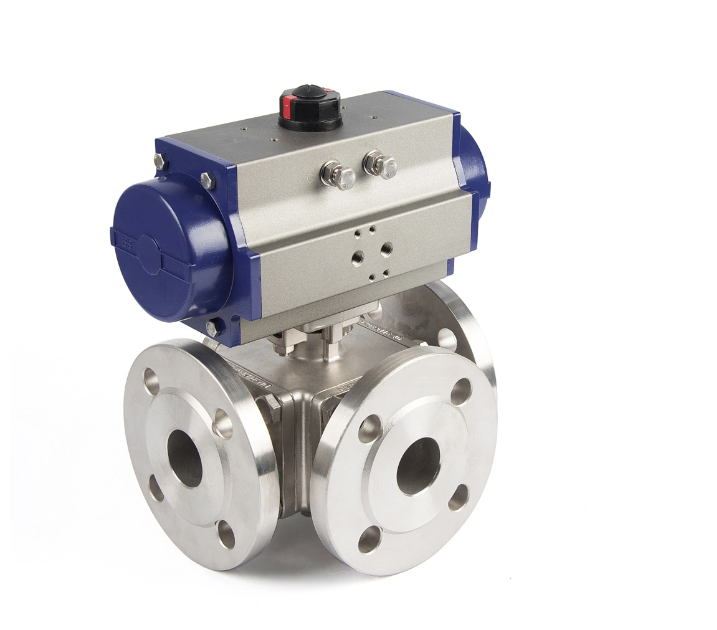

3-Way Pneumatic Control Ball Valve – Stainless Steel L-Port, 4″-12″ Available
Made of stainless steel with excellent corrosion resistance and mechanical strength.

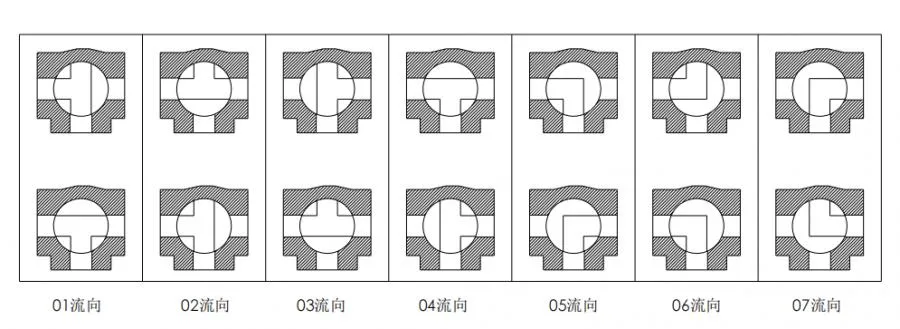

There are three channels inside the ball to control the flow of fluid as required.
The opening and closing of the valve is driven by compressed air, featuring quick action and precise control.
Usually made of high performance sealing materials (such as PTFE) to ensure the sealing performance of the valve in the closed state.
Phone: +86-0577-86910577
Address: Building 1, No. 896, Jinhai 1st Road, Airport New District, Wenzhou Bay New Area, Wenzhou, Zhejiang, People's Republic of China
Features:
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE:6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
REDUCED PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
Main Parts and Materials
| Body |
CF8/CF8M |
Gland |
SS304/SS |
| Gasket |
PTEE |
Gasket |
PTEE |
| Cap |
|
Cap |
CF8/CF8M |
| Seat |
PTEE |
Handle |
SS304/SS |
| Ball |
SS304/316/SS |
Spring Washer |
SS304/SS |
| Stem |
SS304/316/SS |
Flow indication Plate |
SS304/SS |
| Thrust Washer |
PTEE |
Locking Piece |
SS304/SS |
| Filler |
PTEE |
Leather Sheath |
PVC |
| DN |
NPS |
D |
L |
W |
H |
k |
| 8 |
1/4” |
6 |
67 |
90 |
50 |
49 |
| 10 |
3/8” |
6 |
67 |
90 |
50 |
49 |
| 15 |
1/2” |
12 |
75 |
115 |
60 |
60 |
| 20 |
3/4” |
15 |
84 |
120 |
65 |
62 |
| 25 |
1” |
20 |
90 |
150 |
70 |
70 |
| 32 |
11/4” |
25 |
123 |
155 |
77 |
93 |
| 40 |
11/2” |
32 |
139 |
205 |
89 |
107 |
| 50 |
2” |
40 |
150 |
205 |
100 |
120 |
Main Dimensions
Brass Ball Valve with Mounting Pad/ Motor Actuactor Ball Valve
Description: Brass forged body/s.s body, brass ball chrome plated/s.s ball, brass stem/S.S stem, for water treatment system, Solar hotwater system and HVAC system.
1. Application: Water treatment system, solar hotwater system and HVAC system.
2. Material: Forged Brass (CW617N, CW614, CW602N, ASTM C37700) or S/S304 or S/S316
3. Size: 1/2”, 3/4”, 1”, 11/4”, 11/2”, 2”, 21/2”, 3”, 4”
4. Surface: Brass Color, Nickle plated are available
5. Thread Standard: According to ISO228, ISO7/1, DIN2999, or NPT
6. Delivery Time: within 30~45 days after received payment.
7. Payment Terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).
8. Package: Inner box, outer carton, then by pallet.
