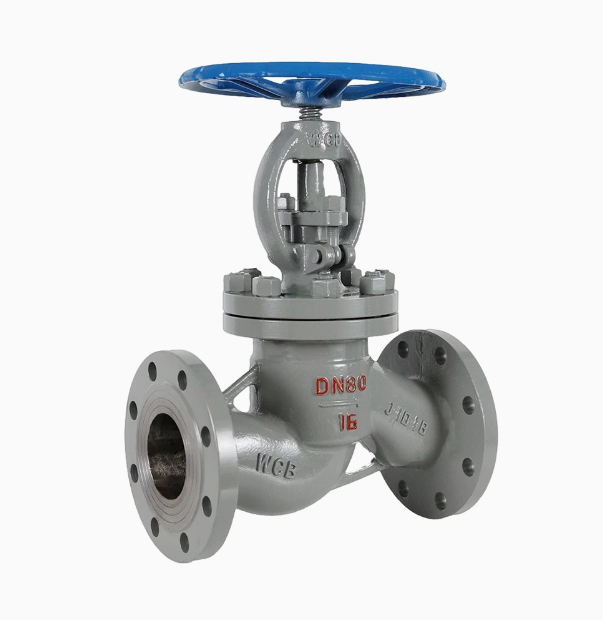

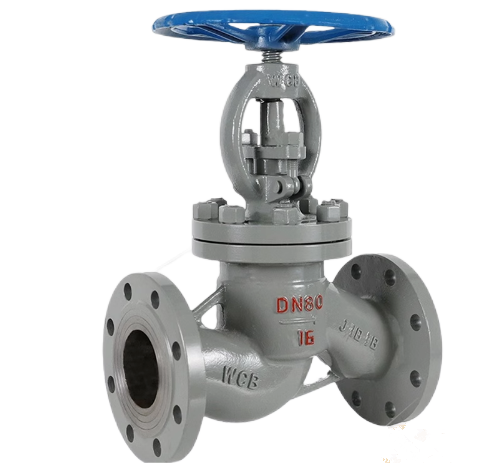

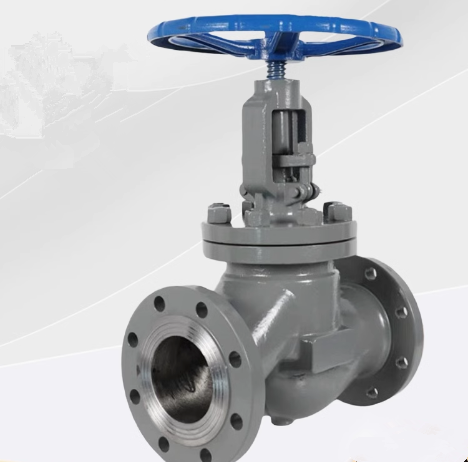

GOST(ГОСТ) Flanged Globe Valve is a valve designed and manufactured according to Russian State standards (ГОСТ), which is installed on pipelines through flange connections for cutting off, connecting or regulating medium flow.
Size Range: DN15 ~ DN300
Class Range: PN16 ~ PN100
Materials：WCB, WC6, WC9, CF8, CF8M, CF3, CF3M, CN7M, LC1, LC2, LC3, LCB, LCC, Monel, 20# Alloys, 4A, 5A, and ect.
Face to Face Dimensions:ГОСТ 12815-80 / ГОСТ 33259-2015
Flange end Dimension :ГОСТ 33259-2015
Butt Welded Dimensions：ГОСТ 12821-80
Design and Manufacture：ГОСТ 5762-2002
Pressure Test：API 598

Phone: +86-0577-86910577

Email: nini@futaivalves.com

Address: Building 1, No. 896, Jinhai 1st Road, Airport New District, Wenzhou Bay New Area, Wenzhou, Zhejiang, People's Republic of China

Request a Quote

Product Information

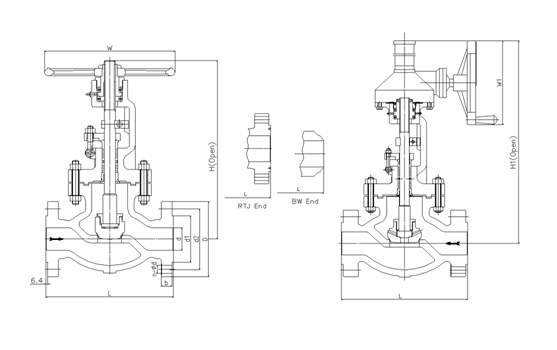

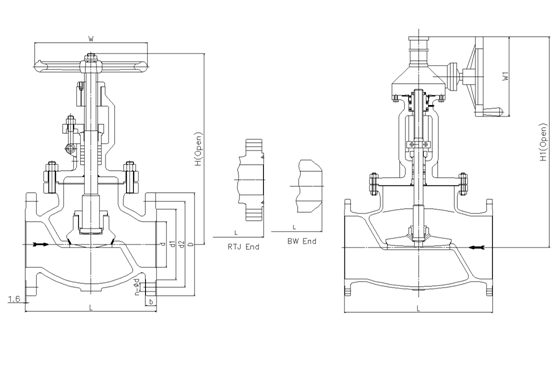

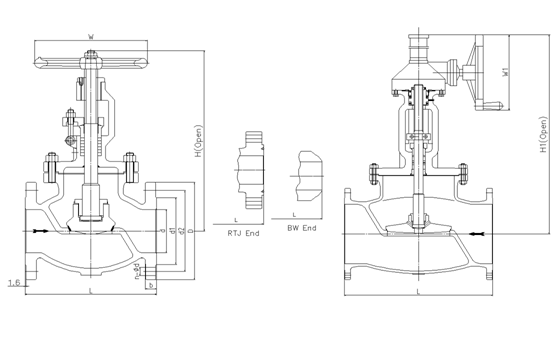

Specification

PN 16
ROST Steel Globe Valve

Diameter	mm	50	65	80	100	125	150	200	250	300	350	400
d	mm	50	65	80	100	125	150	200	250	300	350	400
L(RF)	mm	230	290	310	350	400	480	600	650	750	850	950
d1	mm	100	120	135	155	185	210	265	320	375	435	485
d2	mm	125	145	160	180	210	240	295	355	410	470	525
D	mm	160	180	195	215	245	280	335	405	465	520	580
b	mm	18	18	20	20	22	22	24	26	28	30	32
n-Фd	mm	4-18	4-18	8-18	8-18	8-18	8-22	12-22	12-26	12-26	16-26	16-30
H	mm	280	327	355	415	460	510	588	725	925	1030	1170

PN 25
GOST Steel Globe Valves

Diameter	mm	50	65	80	100	125	150	200	250	300	350	400
d	mm	50	65	80	100	125	150	200	250	300	350	400
L(RF)	mm	230	290	310	350	400	480	600	650	750	850	950
d1	mm	100	120	135	160	188	218	278	332	390	448	505
d2	mm	120	145	160	190	220	250	310	370	430	490	550
D	mm	160	180	195	230	270	300	360	425	485	550	610
b	mm	20	22	24	24	26	28	30	32	34	38	40
n-Фd	mm	4-18	8-18	8-18	8-22	8-26	8-26	12-26	12-30	16-30	16-33	16-36
H	mm	350	400	355	415	460	510	710	786	925	1030	1170
H1	mm						690	950	990	1080

PN40

GOST Steel Globe Valves

Diameter	mm	50	65	80	100	125	150	200	250	300	350	400
d	mm	50	65	80	100	125	150	200	250	300	350	400
L(RF)	mm	230	290	310	350	400	480	600	650	750	850	950
d1	mm	100	120	135	160	188	218	282	345	408	465	535
d2	mm	125	145	160	190	220	250	320	385	450	510	570
D	mm	160	180	195	230	270	300	375	445	510	570	655
b	mm	20	22	24	24	26	28	34	38	42	46	50
n-Фd	mm	4-18	8-18	8-18	8-22	8-26	8-26	12-30	12-33	16-33	16-36	16-39
H	mm	373	408	436	480	558	611	720	665	720	860	10100
