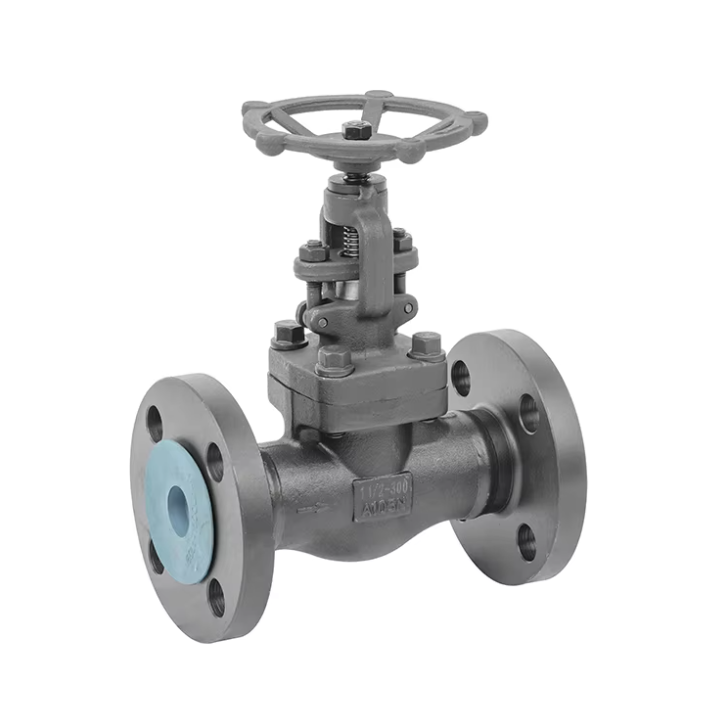

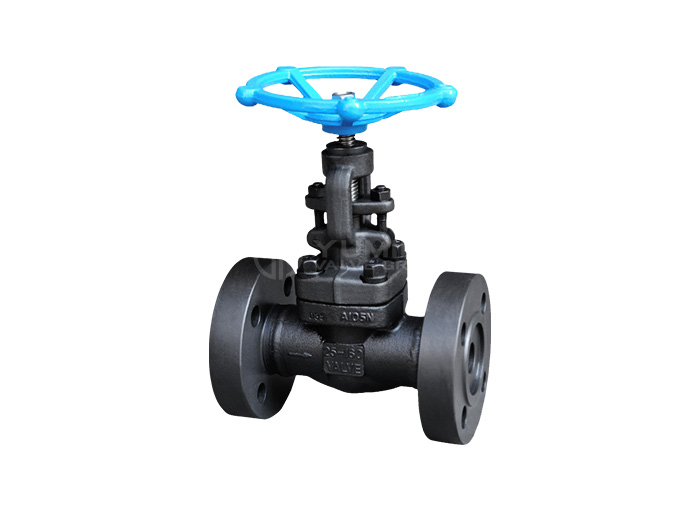

JIS Standard Globe Valve – 10K 20K, Stainless Steel Cast Steel, Flanged, ISO 9001
Cast steel material is one of the commonly used materials for globe valves, with WCB, 20 # steel, 25 # steel, and various manganese steels being the most popular materials in Russia.
Face to Face Dimensions:ANSI / GOST / JIS / DIN / EN
Flange end Dimension :ANSI / GOST / JIS / DIN / EN
Butt Welded Dimensions：ANSI / GOST / JIS / DIN / EN
Design and Manufacture：ANSI / GOST / JIS / DIN / EN
Pressure Test：ANSI / GOST / JIS / DIN / EN
Materials：WCB, 20# STEEL, 25# STEEL, CF8M, CF8, CF3M, CF3 and etc.
Phone: +86-577-86910577
Address: Building 1, No. 896 Jinhai 1st Road, Airport New Area, Wenzhou Bay New District, Wenzhou, Zhejiang, China
Specification
Class150

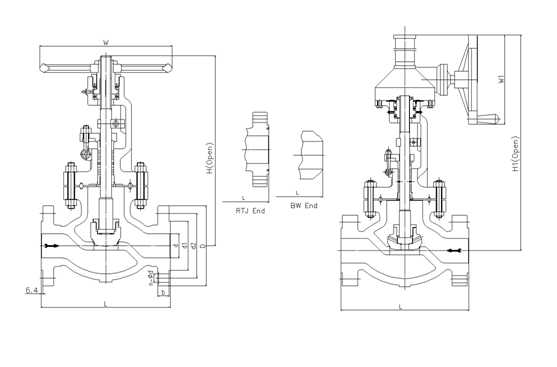

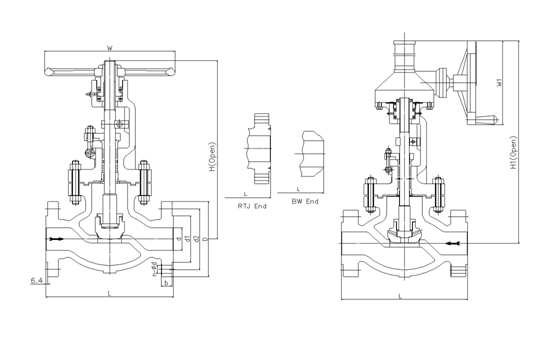

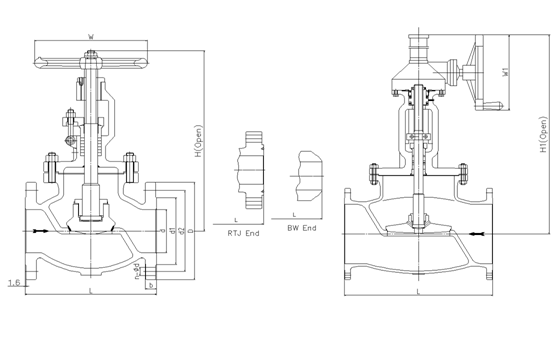

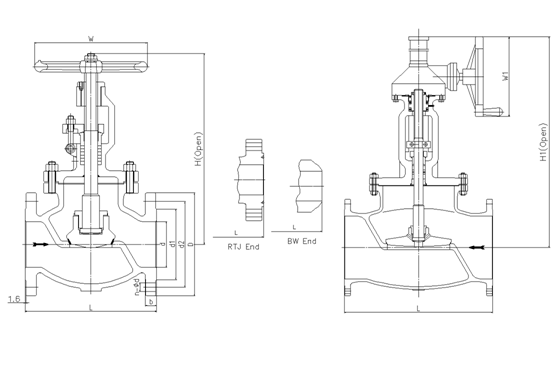

API 600 Steel Globe Valve
| NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
| d |
mm |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
| L(RF) |
mm |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
622 |
698 |
| d1 |
mm |
92.1 |
104.8 |
127 |
157.2 |
185.7 |
215.9 |
269.9 |
323.8 |
381 |
| d2 |
mm |
120.7 |
139.7 |
152.4 |
190.5 |
215.9 |
241.3 |
298.5 |
362 |
431.8 |
| D |
mm |
150 |
180 |
190 |
230 |
255 |
280 |
345 |
405 |
485 |
| b |
mm |
19.5 |
22.7 |
24.3 |
24.3 |
24.3 |
25.9 |
29 |
30.6 |
32.2 |
| n-Фd |
mm |
4-19 |
4-19 |
4-19 |
4-19 |
8-22 |
8-22 |
8-22 |
12-25 |
12-25 |
| H |
mm |
300 |
340 |
360 |
420 |
460 |
500 |
590 |
710 |
810 |
| H1 |
mm |
|
|
|
|
|
556 |
658 |
805 |
955 |
Class300
API 600 Steel Globe Valves
| NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
| d |
mm |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
| L(RF) |
mm |
267 |
292 |
318 |
356 |
400 |
444 |
559 |
622 |
711 |
| d1 |
mm |
92.1 |
104.8 |
127 |
157.2 |
185.7 |
215.9 |
269.9 |
323.8 |
381 |
| d2 |
mm |
127 |
149.2 |
168.3 |
200 |
235 |
269.9 |
330.2 |
387.4 |
450.8 |
| D |
mm |
165 |
190 |
210 |
255 |
280 |
320 |
380 |
445 |
520 |
| b |
mm |
22.7 |
25.9 |
29 |
32.2 |
35.4 |
37 |
41.7 |
48.1 |
51.3 |
| n-Фd |
mm |
8-19 |
8-22 |
8-22 |
8-22 |
8-22 |
12-22 |
12-25 |
16-29 |
16-32 |
| H |
mm |
330 |
360 |
400 |
450 |
500 |
540 |
670 |
855 |
920 |
| H1 |
mm |
|
|
|
|
|
690 |
950 |
990 |
1080 |
Class600
API 600 Steel Globe Valves
| NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
| d |
mm |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
| L(RF) |
mm |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
787 |
838 |
| d1 |
mm |
92.1 |
104.8 |
127 |
157.2 |
185.7 |
215.9 |
269.9 |
323.8 |
381 |
| d2 |
mm |
127 |
149.2 |
168.3 |
215.9 |
266.7 |
292.1 |
349.2 |
431.8 |
489 |
| D |
mm |
165 |
190 |
210 |
275 |
330 |
355 |
420 |
510 |
560 |
| b |
mm |
27.4 |
30.6 |
33.8 |
40.1 |
46.5 |
49.7 |
57.6 |
65.5 |
68.7 |
| n-Фd |
mm |
8-19 |
8-22 |
8-22 |
8-25 |
8-29 |
12-29 |
12-32 |
16-35 |
20-35 |
| H |
mm |
360 |
400 |
440 |
500 |
600 |
720 |
800 |
8700 |
940 |
| H1 |
mm |
|
|
|
575 |
660 |
820 |
960 |
1040 |
1280 |
Class900
API 600 Steel Globe Valves
| NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
| d |
mm |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
| L(RF) |
mm |
368 |
419 |
381 |
457 |
559 |
610 |
737 |
838 |
| d1 |
mm |
92.1 |
104.8 |
127 |
157.2 |
185.7 |
215.9 |
269.9 |
323.8 |
| d2 |
mm |
165.1 |
190.5 |
190.5 |
235 |
279.4 |
317.5 |
393.7 |
469.9 |
| D |
mm |
215 |
245 |
240 |
290 |
350 |
380 |
470 |
545 |
| b |
mm |
38.1 |
41.1 |
38.1 |
44.5 |
51 |
56 |
64 |
70 |
| n-Фd |
mm |
8-26 |
8-29 |
8-26 |
8-32 |
8-35 |
12-32 |
12-39 |
16-39 |
| H |
mm |
480 |
520 |
564 |
685 |
780 |
950 |
|
|
| H1 |
mm |
|
|
630 |
720 |
840 |
1015 |
1100 |
1185 |
